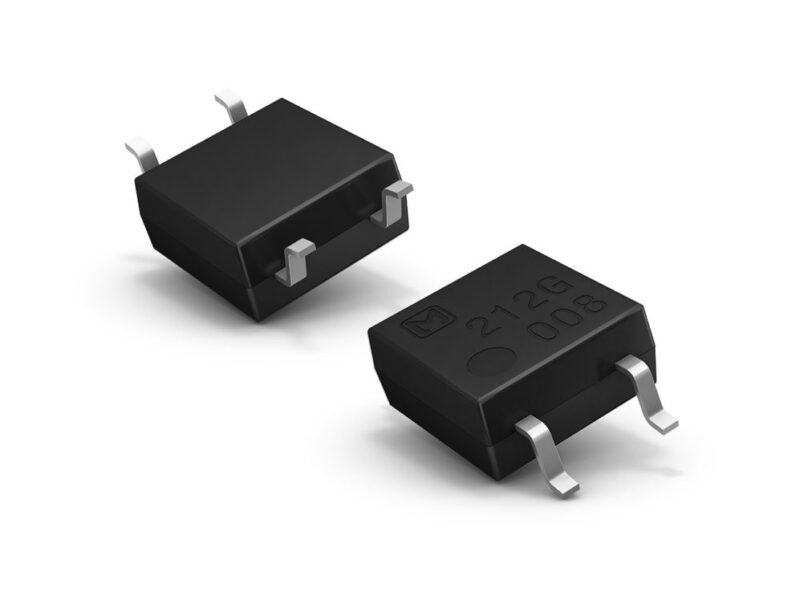

Miniature 60-V MOSFET relays in tiny SOP4 package
Panasonic Industry has introduced the AQY212G3HS and AQY232G3HS 60-V PhotoMOS® MOSFET relays in a miniature SOP4 package. The devices ensure quiet, fast and bounce-free switching.
AQY212G3HS and AQY232G3HS relays benefit from high operating temperature levels of up to +105 degrees Celsius and +125 degrees Celsius respectively, allowing them to be used in higher temperature environments than before. They are ideally suited for a wide range of modern industrial equipment, testing, and measuring equipment as well as security and battery operating equipment.
The very compact SOP4 package of the relays achieves an input-output withstand voltage of 3,750 Vrms (conventional 1,500 Vrms) and enables miniaturization of highly insulated equipment. The AQY232G3HS components achieve high-capacity 2 A load control and AQY212G3HS relays feature 1.8 A load control.
AQY232G3HS components achieve a maximum LED current of 1 mA (1/3 times that of the conventional models). This reduces LED current during use by up to 40% and contributes to lower power consumption for the target applications. In terms of operating time, the AQY232G3HS devices achieve an average of 0.8 ms, which is about 57% of the time of conventional models. The increased speed of the switching operation largely improves the tact time of equipment and systems.
